XGuard Pro C100 Combo
Save with the Combo discount!
Combos include:
XGuard Pro C100 Power Systems
XGuard Remote Board
XGuard Strobe Lights
XGuard Log Screen

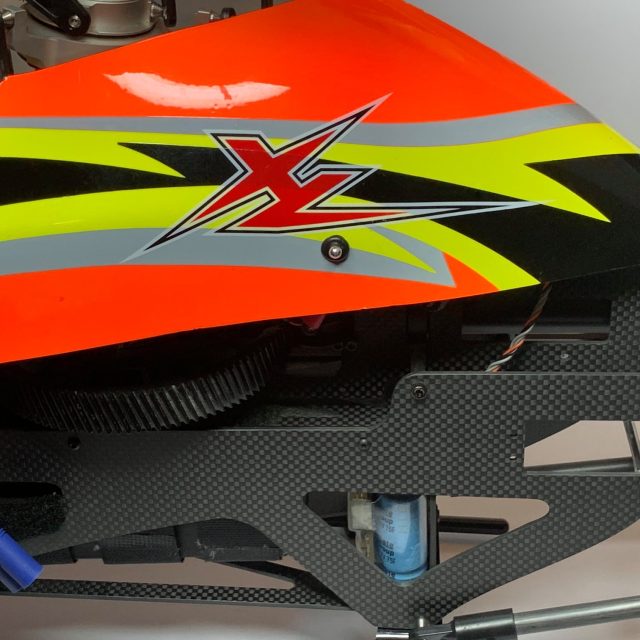

Larger Gasser Models or Scale Helis
The XGuard Pro C100 is for use in larger aircraft like gasser planes. It uses 100 Farad capacitors for extended flight time.
Sale Benefit from a combo
lower price
100F Larger capacity
Longer Flight time
The XGuard Pro C100 is for use in larger aircraft like gasser planes. It uses 100 Farad capacitors for extended flight time.
Each Chosen Combo contains:
- 1 XGuard Pro C100 Backup Power System with Telemetry!
- 1 XGuard Remote Board
- 1 XGuard Strobe Light
- XGuard Pro C100 Features built it into the unit
- Log Display Screen to display the logs that the XGuards store in memory.
Features

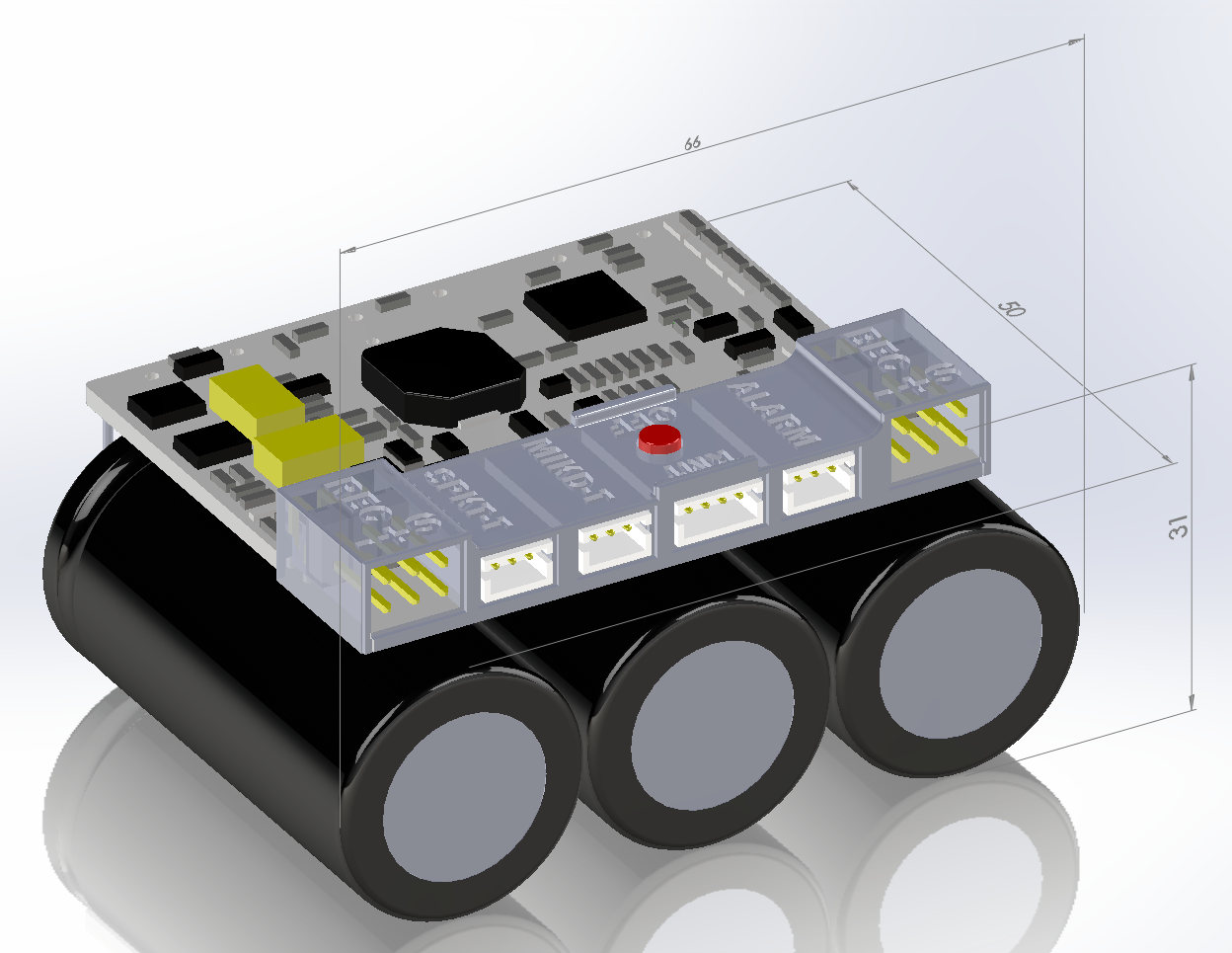

Backup Power Pack with 100 Farad capacitors
Overvoltage protector
Reverse polarity protector
Short Circuit protector
Servo Back EMF protector
Static electricity protector
200 event Logger
Two Telemetry ports. One for Mikado and one for Spektrum. Optional expansion modules for Futaba S-BUS, Jeti and FrSKY
Fault tolerant design defaults to fully connected in case of malfunction
One Remote Board port for controlling the system from an optional Remote board
Strobe Alarm Light port to connect the optional Strobe Lights or Sonic alarm
Four power Ports (Master Slave from ESC and Master Slave to receiver/FBL)
Slow current draw ramp-up to prevent overwhelming the ESC with inrush charging current.
Protection against over-charging the supercapacitors above 8.1V for long term supercapacitor durability
Pin-type Servo Connectors to avoid soldered wires that can fatigue and break
Real-Time Operating System with mission Critical Coding will keep on attending and reacting to alarm events regardless of other functions working at the same time.
XGuard Programmable Operating Modes
ESC mode for small undervoltage sensing from ESC’s BEC
BATT mode for receiver battery empty sensing when voltage drops to 5.5V
Daisy chainable for large Aircraft allows to put several daisy chained XGuards to add capacity.
ADDITIONAL SYSTEM COMPONENTS INCLUDED IN THIS COMBO
XGuard Remote Board :
Place XGuard anywhere hidden in the aircraft and control it from this small board
It has all the same indicator LEDs and Buttons plus additional features
Hot pluggable
Alarm Strobe Lights :
Photo Camera-type strobe lights
Built-in voltage booster to work even when caps are low in voltage
Extremely low consumption via burst compression
PC Board thickness so ceramic components don’t crack from vibration or torsion and screw placement
Also available 100dB audible alarm
LOG Display when using optional remote board
Up to 200 events stay in permanent memory until another event happens in a different power up.
Log Monitor LIVE vs LOG
Hot pluggable
