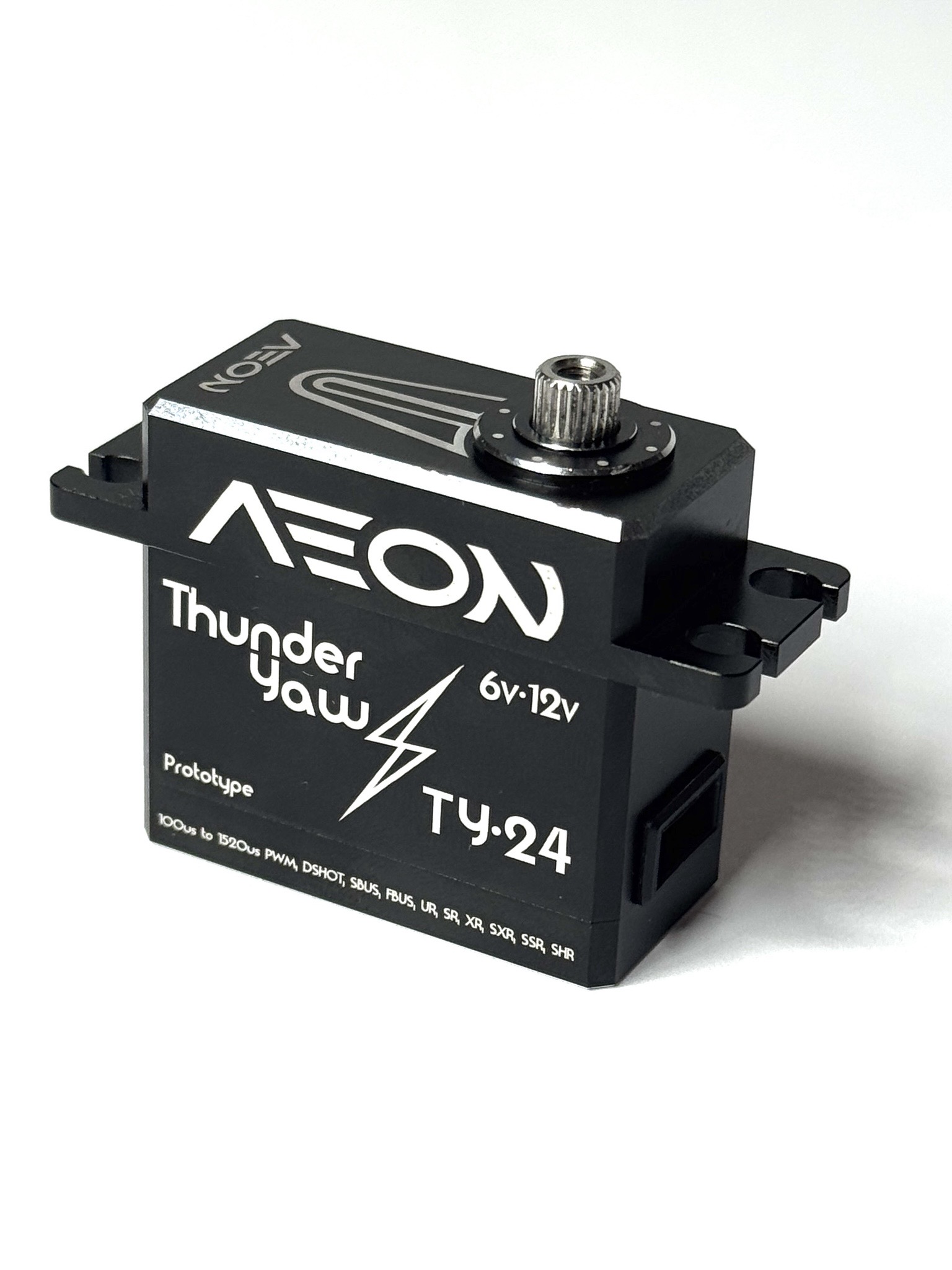

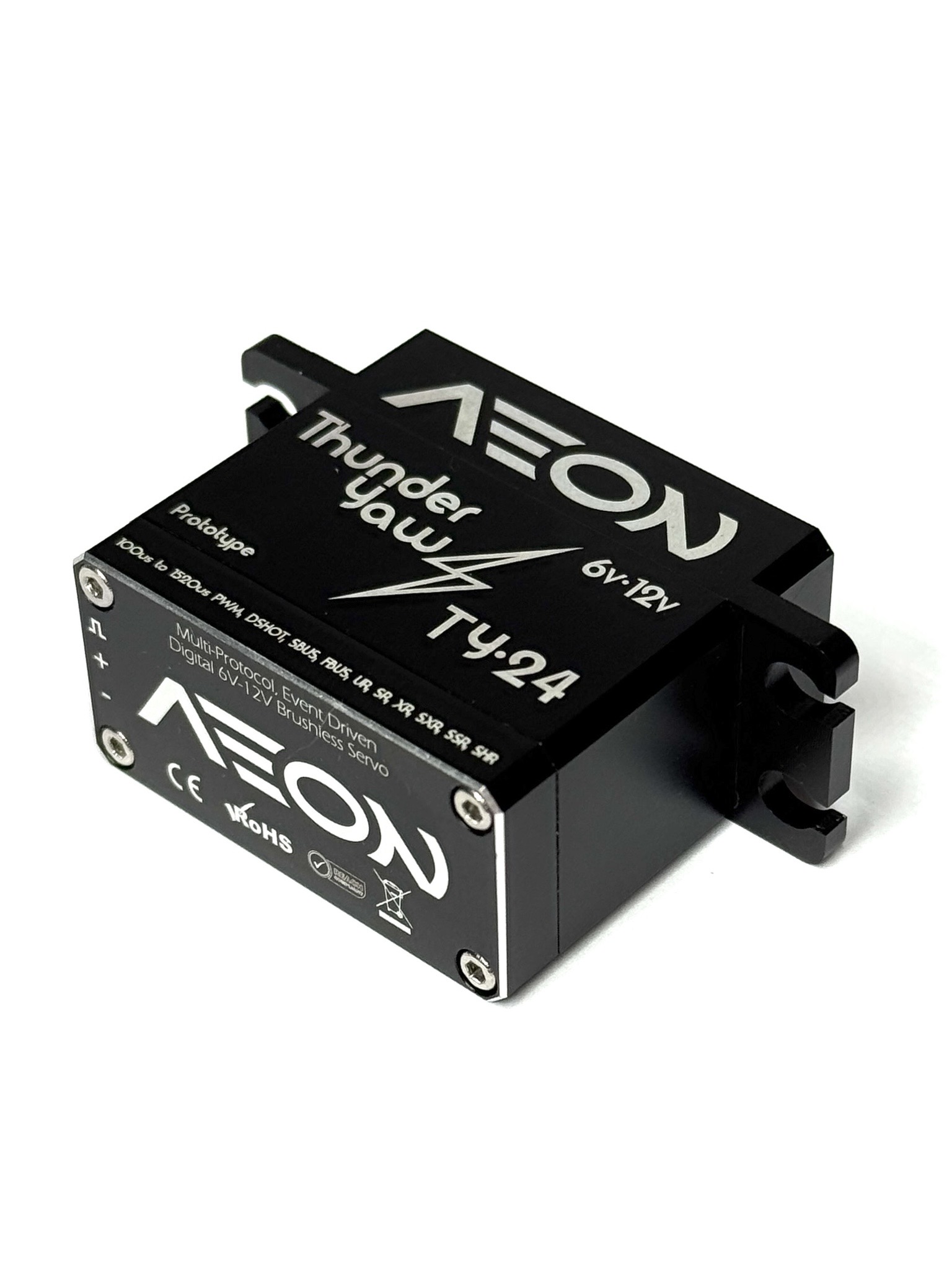

Aeon RC Thunder TY-24 Brushless, Multi-Protocol, Event-Driven 6V-12V programmable tail servo

$185.00Free shipping!

SKU: AEON-TY-24 Categories: ,

Aeon RC Thunder TY-24 Brushless, Multi-Protocol, Event-Driven 6V-12V programmable Tail servo.

Specs:

• Motor type: Brushless
• Voltage 6V-12V
• Six N-type MOSFETS (no P-MOSFETS used)
• Multi core processor
• Multi-tasking Event-driven processes (No bartender loop just like your desktop computer)
• Multi-Protocol:
• 1520us @ 50Hz to 3000Hz
• 1500us @ 50Hz to 3000Hz
•1000us @ 50Hz to 3000Hz
•760us @ 50Hz to 3000Hz
•750us @50Hz to 3000Hz (Default out of the box)
•250us @ 50Hz to 3000Hz
•125us @ 50Hz to 3000Hz
•FBUS (16 Channels)
•SBUS (16 Channels)
•Futaba UR, SR and XR
•Sanwa SXR, SUR, SSR and SHR
•DSHOT150 @ 500Hz
•DSHOT300 @ 1000Hz

• Torque: 24Kg (333 oz)@ 12V
• Speed: 0.026 sec/60° @ 12V
• Resolution 45.5 digital steps per degree (0.0219 degree)
• Programmable Travel Angle 0-300 degrees (90 degrees out of the box)
• Programmable via touch touch-screen Aeon Servo Programmer
• Detachable fireproof servo cable with three lengths available, default is 330mm (12.9 inch)
• Servo Firmware can be updated from the Aeon website
• Cloud system to keep info on all your AEON devices accessible via internet.

You can order the servo with the default values as shown below but if you don’t have or don’t want to buy a programmer or if you just don’t want to learn how to program them we will program it for you and it arrives exactly as you want.

Change those default values in the menus below and we will program it before they ship to you.

Normally it comes set as any standard tail servo, but if you want to try some wild pro setings like Mikado’s DSHOT150 in the tail or Rotorflight’s 250ms at 2000Hz refresh rate in the cyclics and tail we will program it like that for you.

The refresh rate is whatever you send it, from 50Hz to 3000Hz, the servo will automatically adjust itself to what you send it so no need to program the refresh rate.

You May also like.....

  • AEON-T-40
    $185.00Free shipping!
    Select options This product has multiple variants. The options may be chosen on the product page
Loading...

Additional information

Protocol

1520us, 1500us, 1000us, 760us, 750us (default), 250us, 125us, FBUS, SBUS, DSHOT150, DSHOT300, Sanw SXR, SUR & SSR, Sanw SHR, Fut UR, Fut SR, Fut Narrow Band, Fut High Speed

Preset

Tail Preset for TY-24 (default)

SBUS or FBUS Channel (only valid for those protocols)

N/A, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
